Product details

Description

This UPTab DisplayPort 1.4 to 3 DisplayPort Multi-Stream Transport (MST) Hub enables three different display modes on up to three monitors connected to a single DisplayPort output. You can connect a single display at resolutions up to 8K@60Hz to mirror your computer's desktop. Add a second monitor and the hub will automatically extend the image to span the two displays at resolutions up to 5K@60Hz for each display. Connect three monitors and the hub automatically adjusts to produce a 3x1 "video wall", with the single image spanning the three displays at resolutions up to 4K@60Hz for each monitor. This hub is ideal for Gamers, Video Editors, Architects, and anyone working with ultra-high-resolution images or videos.

Multi-Stream Transport (MST) Hub: An MST Hub enables three different display modes on up to three monitors connected to a single DisplayPort output.

Duplicate Mode: You can connect a single display at resolutions up to 8K@60Hz to mirror your computer's desktop.

Extended Desktop Mode: Connect two monitors and the hub will automatically extend the image to span the two displays at resolutions up to 5K@60Hz for each display.

Video Wall Mode: Connect three monitors and the hub automatically adjusts to produce a 3x1 "video wall", with the single image spanning the three displays at resolutions up to 4K@60Hz for each monitor.

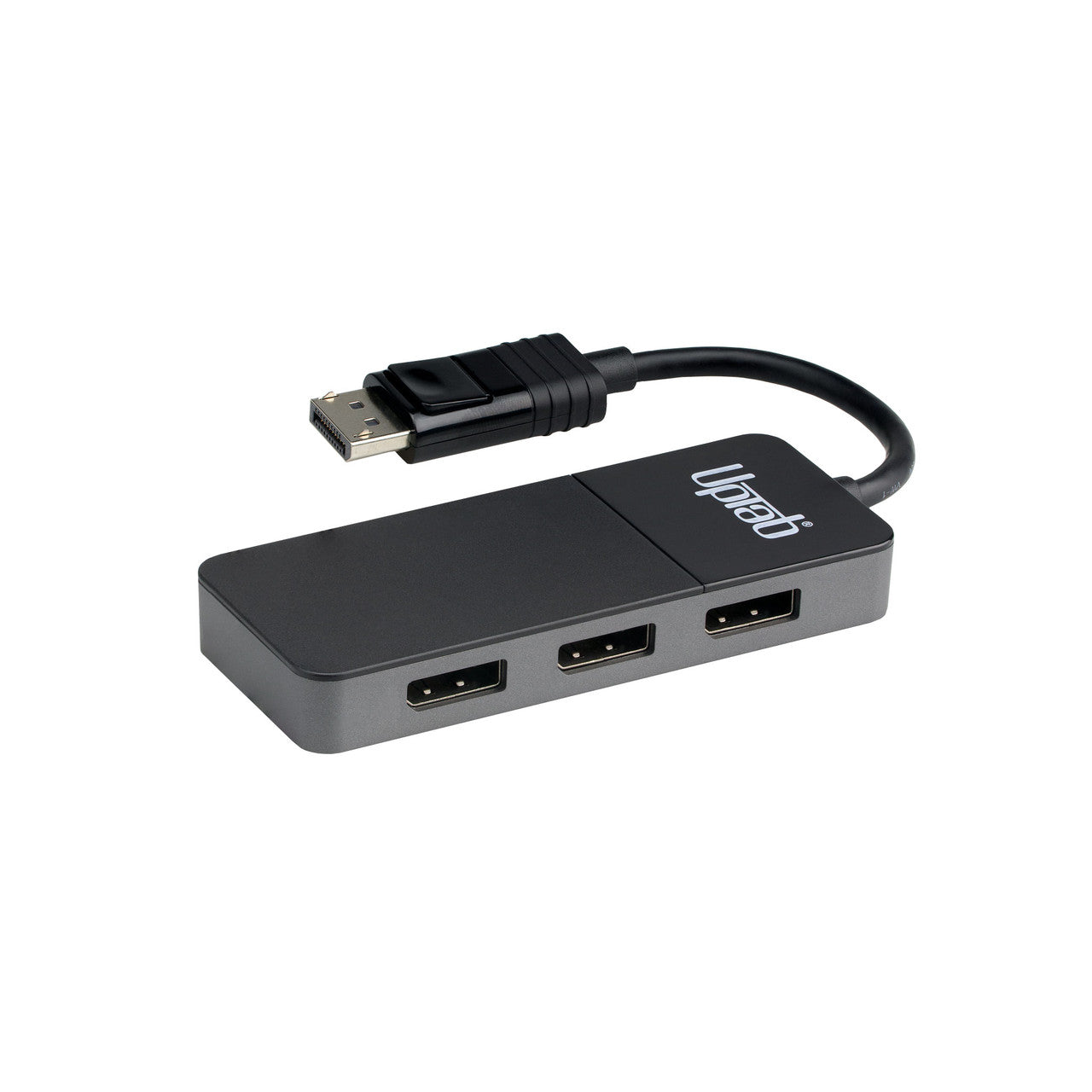

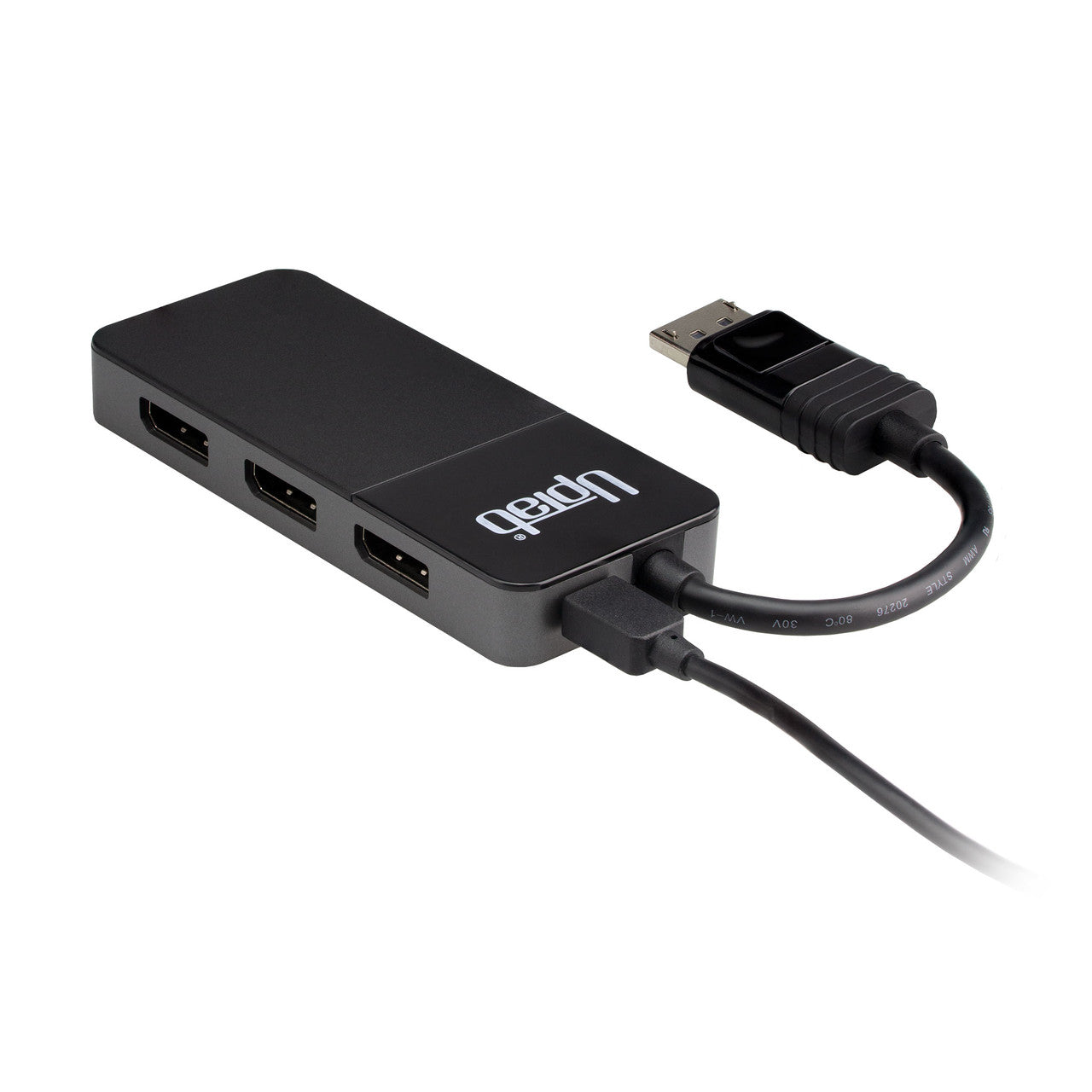

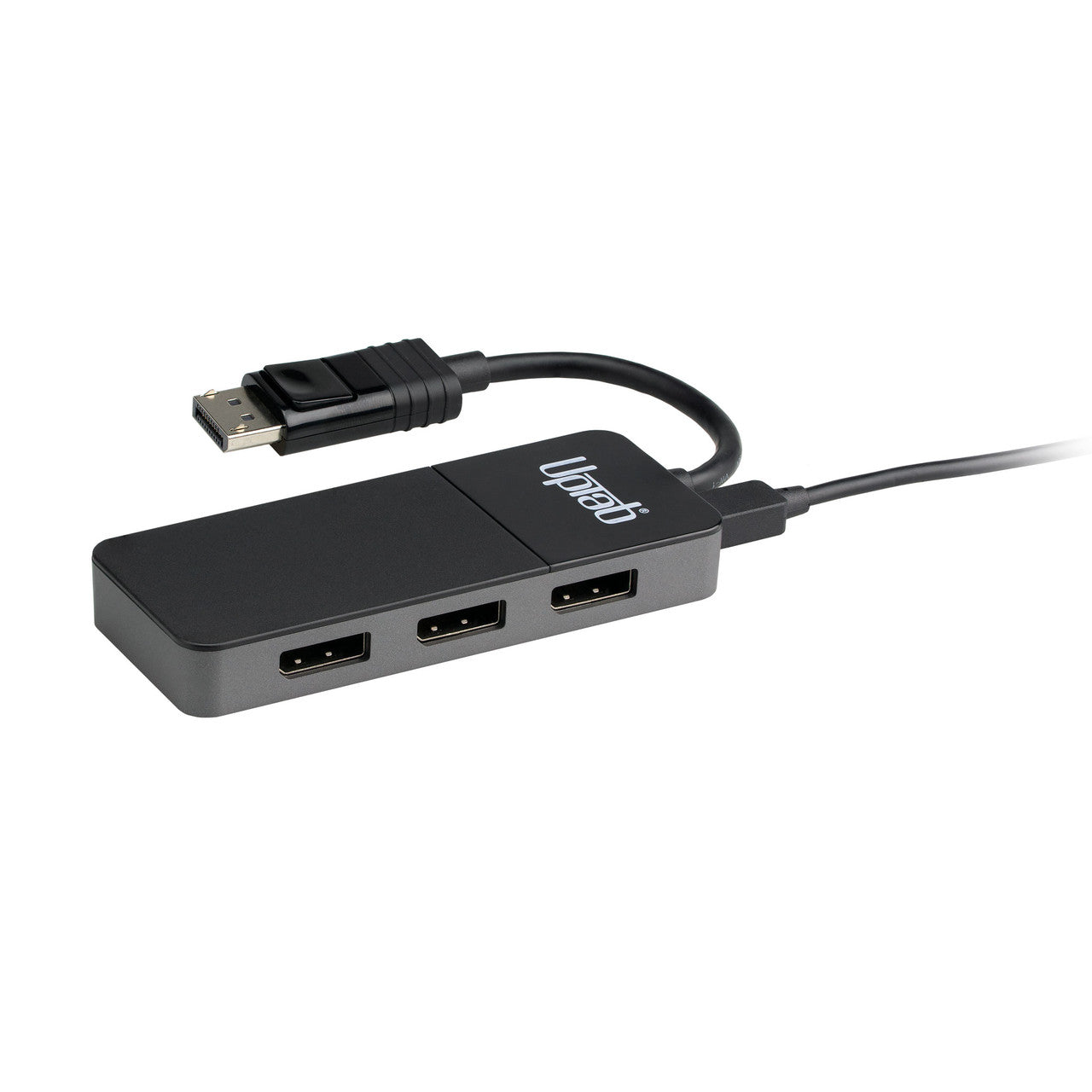

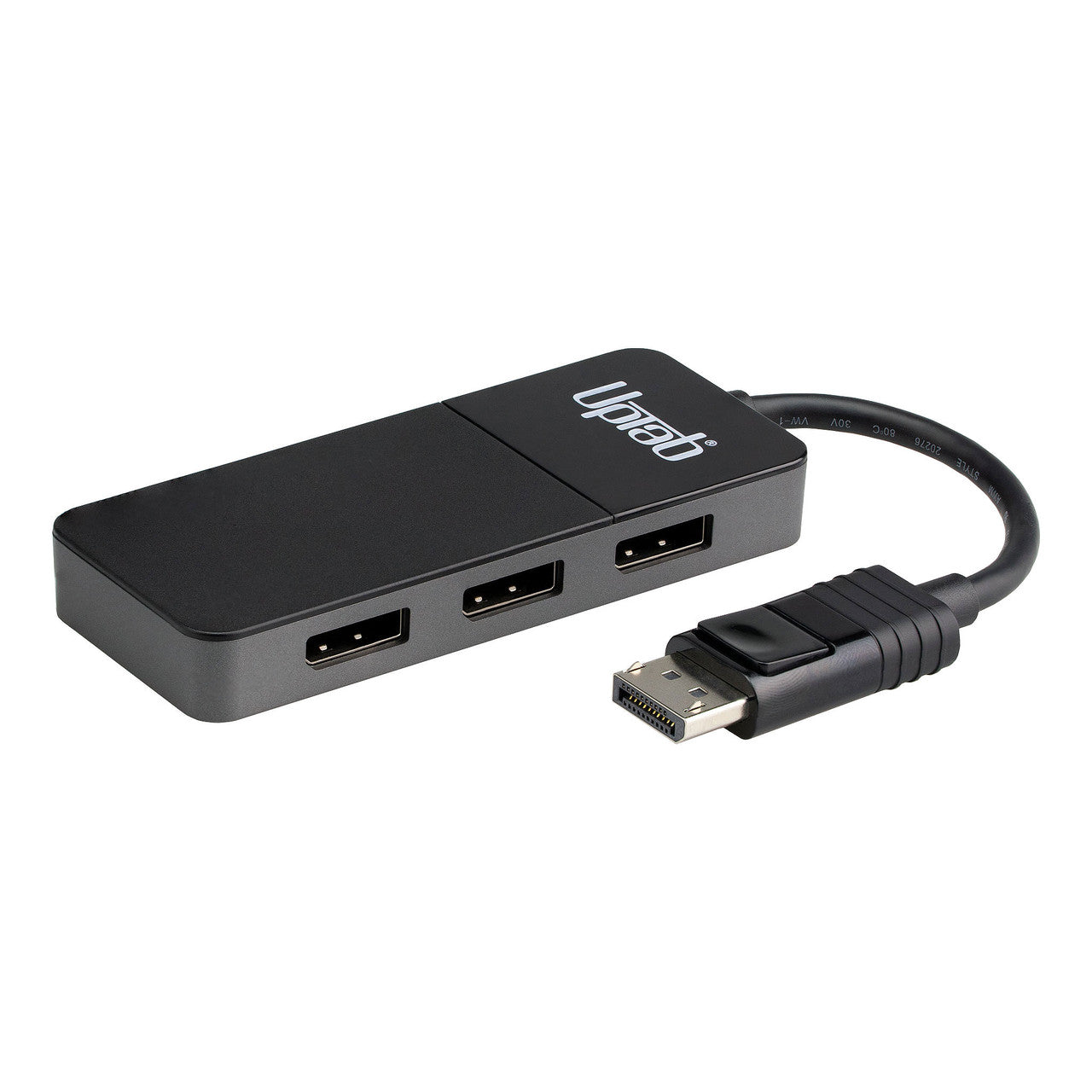

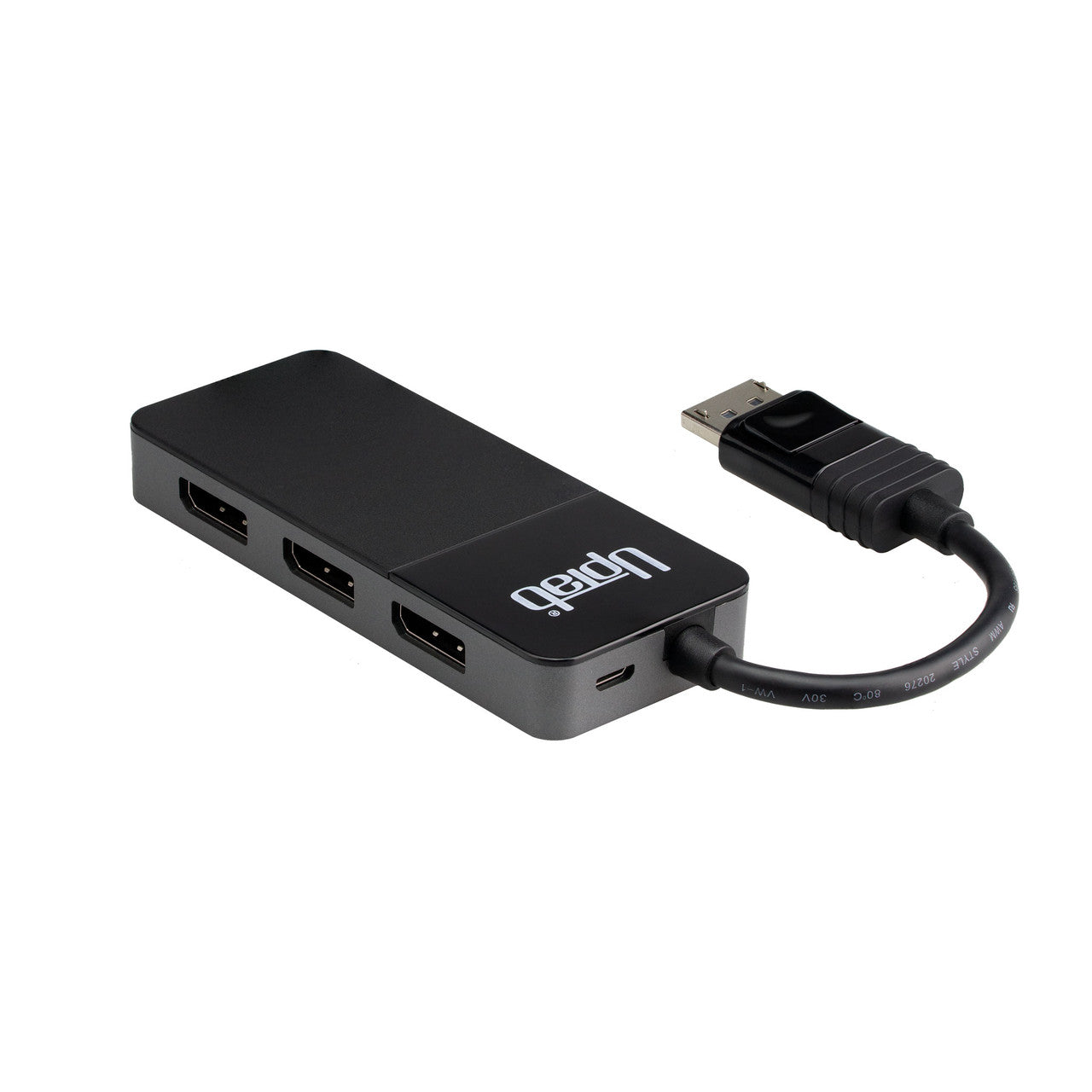

UPTab DisplayPort to 3 DisplayPort Splitter Adapter



Specifications:

  • Input: DisplayPort 1.4
  • Output:
    • Single DisplayPort 1.4 Monitor Supports display resolution up to 8K at 60Hz frame rate
    • Dual DisplayPort 1.4 Monitors Supports display resolution up to 5K at 60Hz frame rate
    • Three DisplayPort 1.4 Monitors Supports display resolution up to 4K at 60Hz frame rate
  • Supports HDR High Dynamic Range, HDR10, HDR10+ and Dolby Vision
  • Audio support up to 8 channels LPCM
  • Micro USB port for external Power (Micro USB Cable Included)
  • Dimensions: 4 1/8" x 1 5/8" x 1/2"



UPTab DisplayPort to 1.4 3x DisplayPort Monitors



In The Box:

  • 1 DisplayPort 1.4 to 3x DisplayPort Adapter
  • 1x USB to Micro USB 40" (1m) Cable

Customer Reviews

Based on 16 reviews
69%
(11)
6%
(1)
13%
(2)
13%
(2)
0%
(0)
E
Ed Magdalena
It Works

Works at it should and as expected

A
Alan C.
Worked for me

I changed out to a new desktop computer and the only output for a monitor was a single DisplayPort 1.4 outlet. I wanted to use two monitors in extended mode, and this hub did the trick. I can't say anything about how it works in the long term, but right now it is working perfectly.

m
michael sohyda
Works great for 3 1440p monitors

I needed something to connect 3 27" 1440p 144Hz monitors that I normally have connected directly to my desktop (2080ti graphics card) to a docking station for my work computer while I'm working from home. The 2080ti supports DisplayPort 1.4 while the docking station/laptop only supports 1.2 (HP Zbook 15 G2) so I wanted something that would work for both. This was the cheapest I could find that supports DP 1.4 and has 3+ ports and so far it's working great.Some caveats that I've found is there are some limitations for both computers. On the laptop I can do two monitors at 1440p @ 60Hz and the third at 1080p @ 60Hz. This is purely a limitation of the computer/docking station though because I can run all 3 at 1440p on the desktop. However on the desktop I can only run them up to 120Hz, and I can't run all of them that high. It seems I can run 1-2 at 100 or 120Hz and the third at 60Hz.I was also having some issues with screens flickering and green/red dots moving around the screens in dark areas, but that was only on the laptop. After blowing out the docking station a little and plugging the connector back in a few times it seems to be working fine. I also wasn't able to use a USB port on the docking station to power it, but using a USB port on the laptop itself, a charging brick, or a USB port on another computer worked without any issues. I suspect this is because of how the USB ports work on my docking station with a keyboard and mouse already connected.Even though I've only been using it for a week or so, I would highly recommend this hub over spending 2-3x as much on a new docking station with 3 DisplayPort connectors or buying a similar 3-port hub locally.

V
Velcro
Does what I need with no fuss.

With everything going on I had started to work from home and was sent home with my work computer and one monitor. I decided to use that monitor in addition to my own - which was fine for the work computer but my home computer had one displayport output. I grabbed this hub (after making sure my video card could handle it) and within 10-15 minutes had a working dual monitor system on my home computer as well. It's been several weeks and no issues yet!

T
Tong
Works Great!

It works great! I have no problem with it. It uses a usb to mini-usb to power it on. So if it is not working for you, check to make sure its plugged in.
